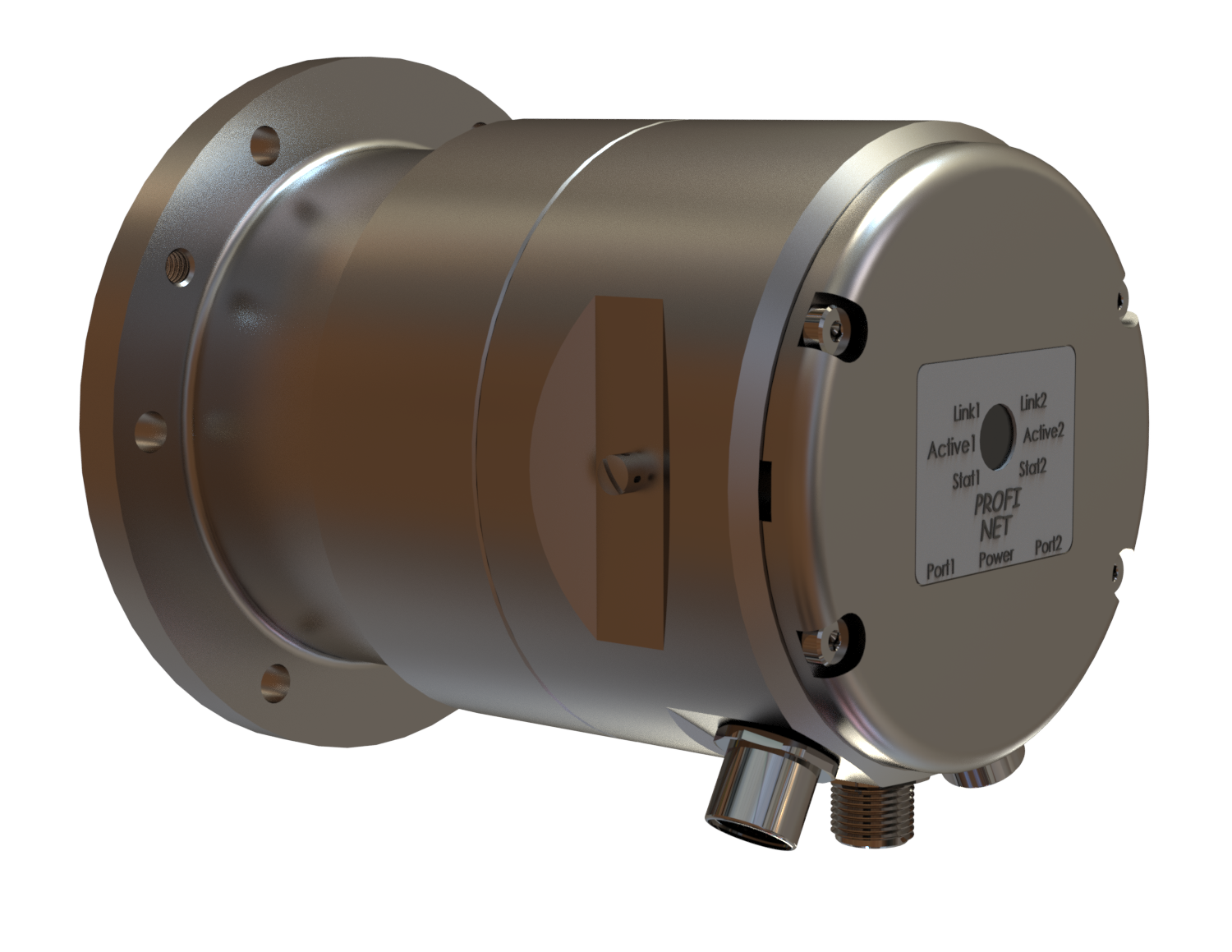

We introduce the MA4401-series! A robust Heavy Duty encoder with Profinet interface. With features such as breathable membrane, mechanical locking and extra sturdy bearings. This encoder is built to last in the harshest of environments.
Available in a Stainless steel ASI316 or anodized aluminium housing.
With the ingress protection of IP67, together with its robust enclosure, the encoder is suitable for marine applications. Such as cranes and motors.
| Elektriskt gränssnitt | Profinet |
|---|---|
| Axeltyp | Solid shaft |
| Axeldimension | ø11 mm key way |
| Matningsspänning | 10-32 VDC |
| Elektrisk anslutningsriktning | Radial |
| Elektrisk anslutning | Radiell M12 |
| Funktion | Absolute encoder |
| Ytbehandling | Stainless steel |
| Shock | 100g at 6 ms (EN60068-2-27) |
| Vibration | 10g 10 – 1000 Hz (EN60068-2-6) |
| Temperaturområde | -40ºC to +85ºC |
| Ytterdiameter | ⌀115 mm |
