MA4301 Absolute encoder with SSI Interface, HEAVY DUTY, New!

We present the MA4301-series of absolute encoders with SSI communication protocol.  Additional incremental signals can also be provided with TTL or HTL output levels.

With new features such as breathable membrane and double shaft seal this encoder is built for use in harsh environments.

The extreme robust design and encapsulation of the encoder series enables it for use in Marine or Off-shore environements. Mines & Cranes are two other suitbale fields of operation for the series.

Mechanically is the MA430-series based on a ø11mm solid shaft with key-way to prevent slip and mounting  a B10 mounting flange. Available in anodized aluminium or stainless steel ASI316 housing.

FUNCTIONS OF THE ENCODER

  • Velocity Control
  • Absolute positioning

SUITABLE APPLICATIONS

  • Mines, Marine, Cranes and othe Environments with high risks of corrosion and wear.
  • Paper, Metallurgy or Windpower with high requirements in terms of useable life and relability

For more information please contact us!

Category:

Additional information

Function

Absolute encoder
Outer diameter

⌀115 mm
Shaft type

Solid shaft
Shaft dimension

ø11 mm key way
Electrical connection

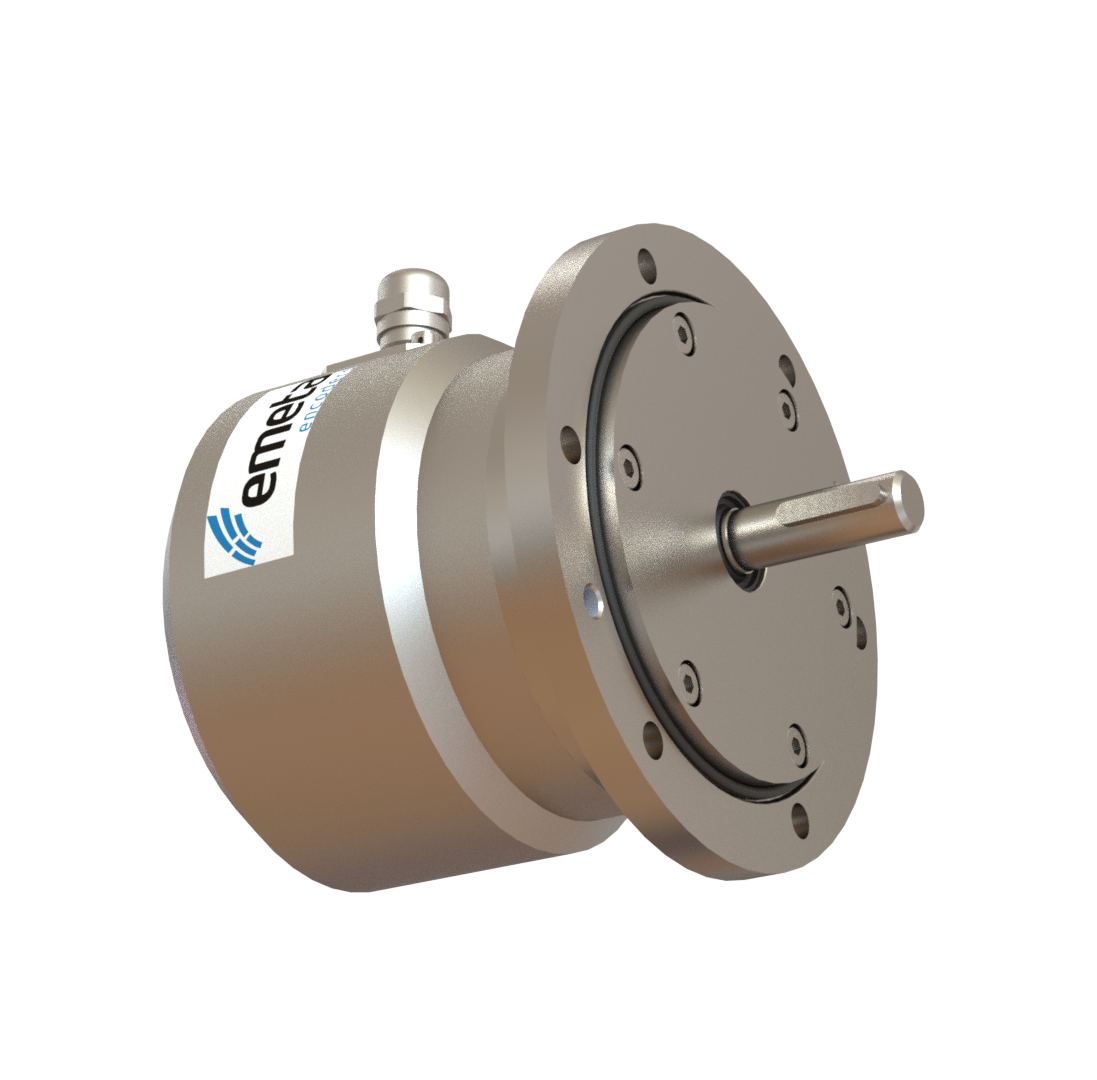

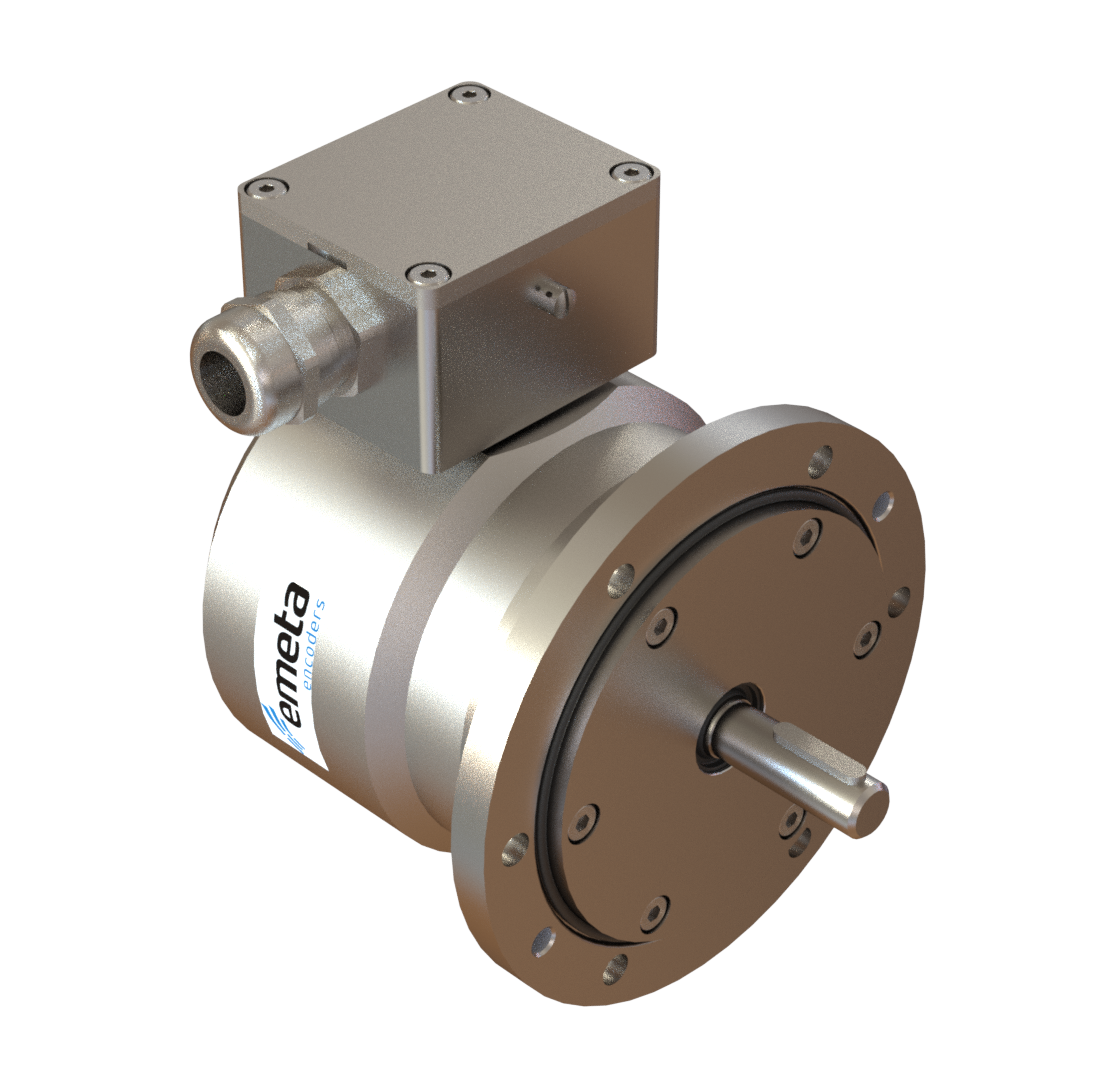

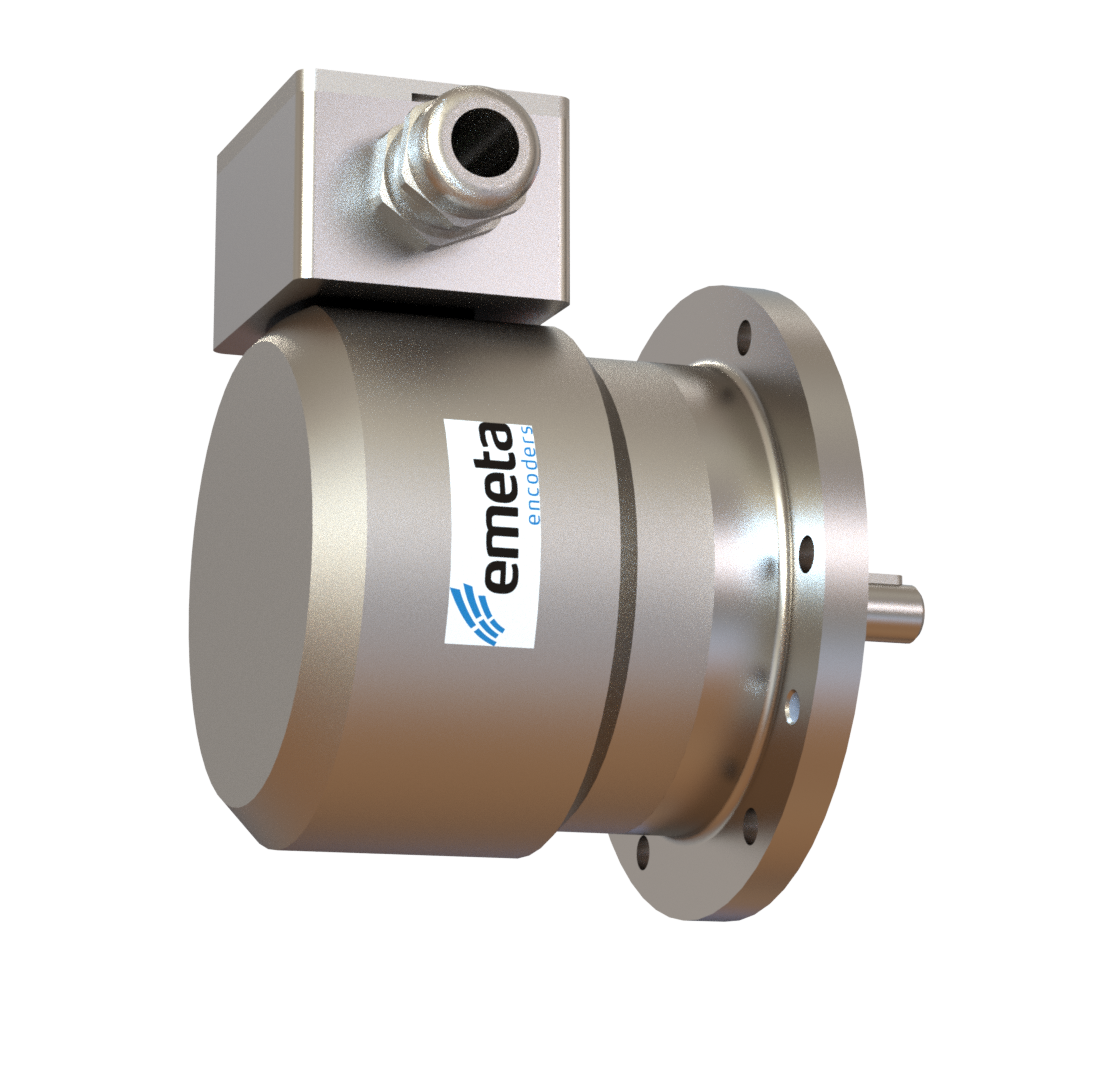

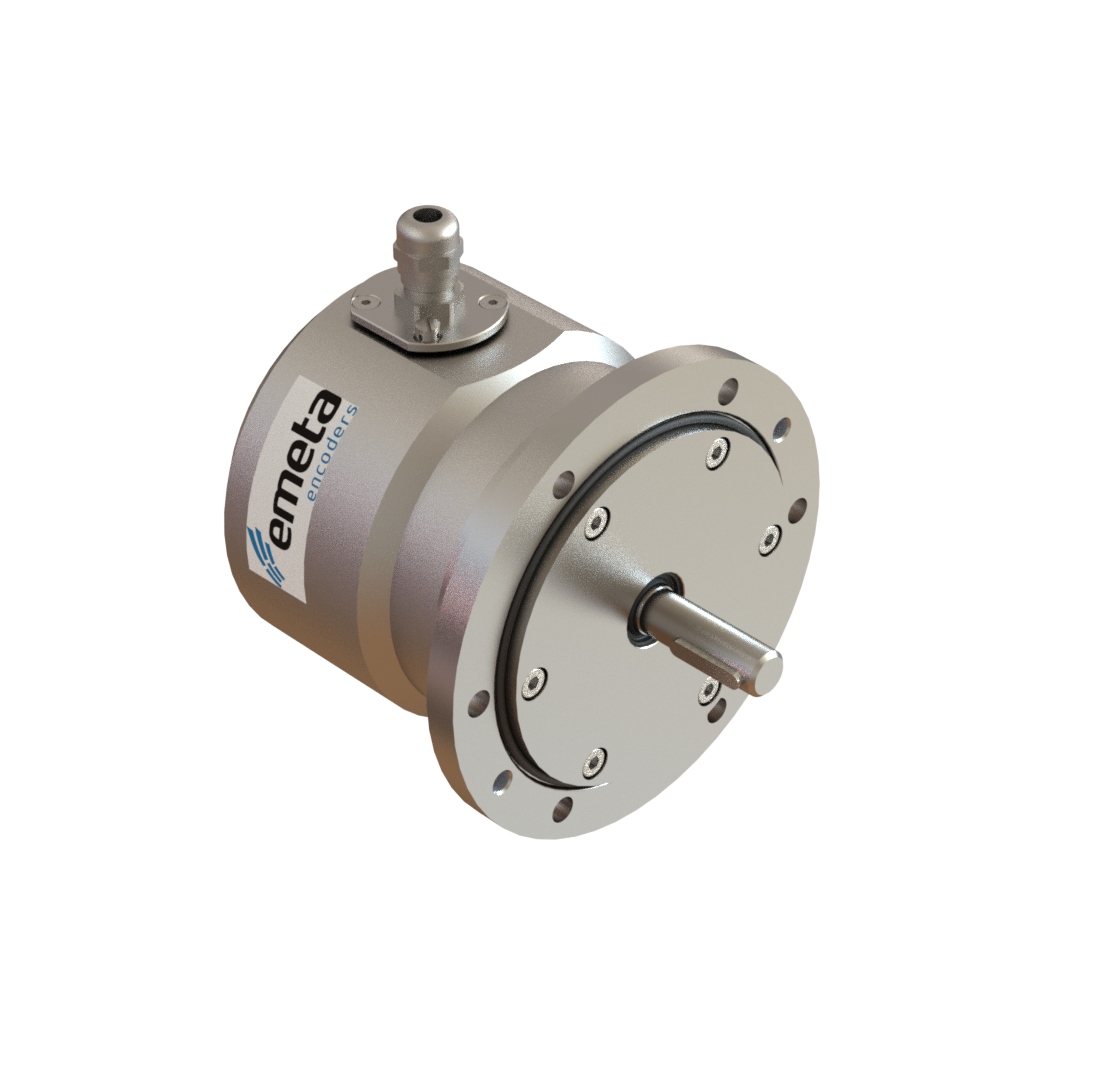

Cable, Terminal box, 12 pin Con FM (M23 type)
Connection direction

Radial
Power supply

5 Vdc, 5 – 30 Vdc
Electrical interface

SSI
Number of channels

6 channels (A, B & 0-pulse differential)
Surface treatment

Anodized aluminium, Stainless steel
Temperature range

-30ºC to +70ºC
Vibration

100g at 6ms (EN60068-2-27)
Flange type

B10 Euro flange
Axeltätning

Double shaft seal with protective lip
Membranfilter

Double membrane filter on terminalbox
Ventilated housing with membrane filter on cabel and M23-version

Description

4301 Product introduction

Data Sheet MA4301-EN

Related products

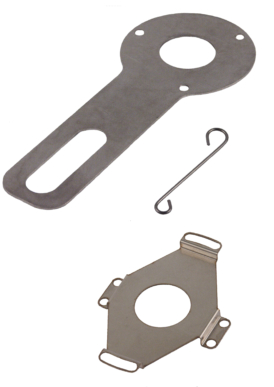

STATOR COUPLINGMA4201 Redundant encoder, HEAVY DUTY (NEW)
